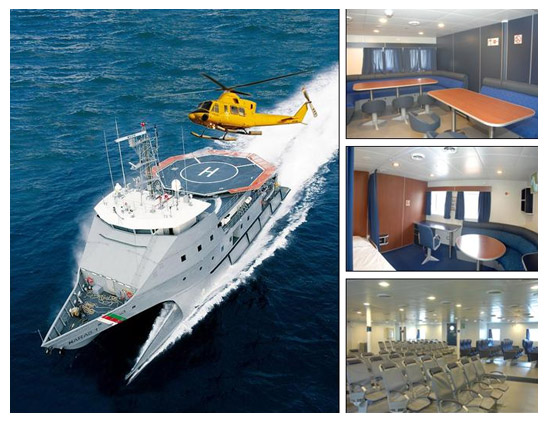

AMD520P 'Haras 1' & 'Haras 2'

A high speed multi purpose patrol, rescue, fire fighting and personnel transfer vessel, with a wave piercing hull form and a retractable T-foil ride control system.

Builder: Rodriquez Cantieri Navali Spa, 2008
Operation: Coastal Patrol Duties for the Royal Oman Police Coast Guard.

Particulars

Length Overall: 52 m
Beam Overall: 15.5 m
Draft (maximum) : 2.0 m
Deadweight (normal): 32.8 tonnes
Capacity : 24 crew, 100 passengers or 200 survivors
Shaft Power : 4 x 1740kW
Main Engines: 4 x MTU 16V4000M71
Propulsion: 4 x Kamewa 71SII
Speed (Full load): 40 Knots
Speed (Maximum): 42 Knots
