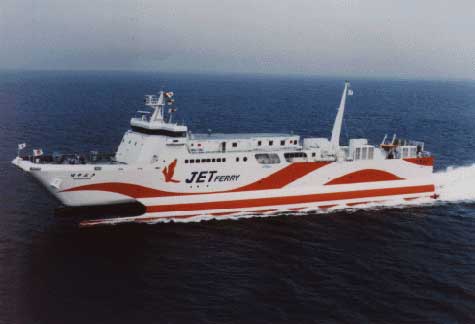

AMD1500 MkII - "Hayabusa"
The largest aluminium vessel in the world at the time of construction, and the first fast vehicle ferry designed to carry large trucks,
"Hayabusa" was selected as the Japanese Society of Naval Architects as their Ship of the Year in 1995.
Builder: Kawasaki, 1994
Operation: Japan
Particulars
| Length Overall: |
98.78 m |
| Beam Overall: |
19.98 m |
| Draft (maximum) : |
7.30 m |
| Deadweight (normal): |
570 tonnes |
| Capacity : |
460 passengers
94 cars or 24 coaches/trucks |
|
| Shaft Power : |
2 x 5420 kW + 2 x 4060kW |
| Main Engines: |
2 x Caterpillar 3616 + 2 x 3612 |
| Propulsion: |
4 x KHI KPJ169A Waterjets |
| Speed (Full load): |
30 Knots |
| Speed (Maximum): |
35 Knots |
|
|
